NLC453232T-181K-PF

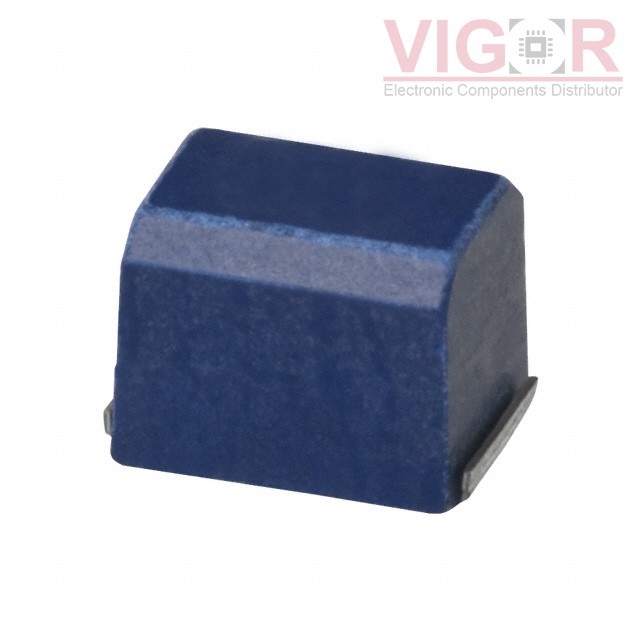

Image is for reference,
please contact us to get the real picture

Part No :: NLC453232T-181K-PF

Manufacturer: TDK Corporation

Description: FIXED IND 180UH 120MA 7.5 OHM

Catalog: Fixed Inductors

DataSheet: NLC453232T-181K-PF PDF

Availability: 788 pieces

Unit Price: ~~$0.41000~~

Current price of NLC453232T-181K-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NLC453232T-181K-PF Specifications

Type	Description
Series:	NLC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	180 µH
Tolerance:	±10%
Current Rating (Amps):	120 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	7.5Ohm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	6.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	796 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
