22R156C

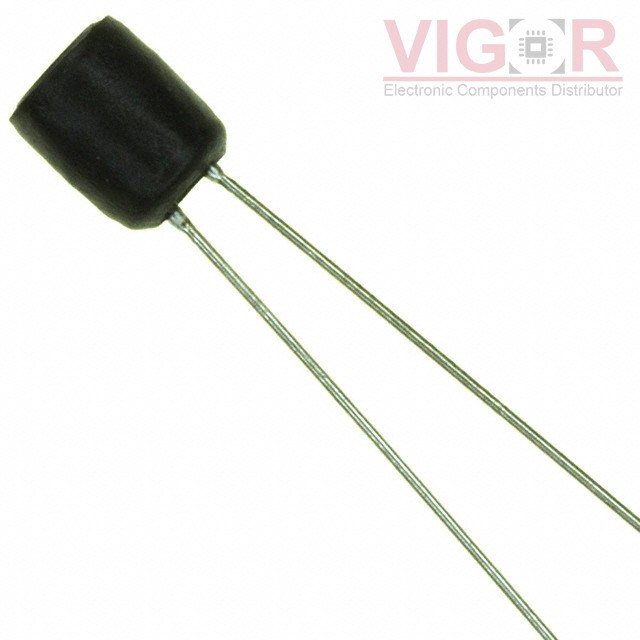

Image is for reference,
please contact us to get the real picture

Part No :: 22R156C

Manufacturer: Murata Power Solutions

Description: FIXED IND 15MH 54MA 51.7 OHM TH

Catalog: Fixed Inductors

DataSheet: 22R156C PDF

Availability: 496 pieces

Unit Price: ~~$0.84000~~

Current price of 22R156C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

22R156C Specifications

Type	Description
Series:	2200R
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	15 mH
Tolerance:	±10%
Current Rating (Amps):	54 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	51.7Ohm Max
Q @ Freq:	140 @ 150kHz
Frequency - Self Resonant:	510kHz
Ratings:	-
Operating Temperature:	-25°C ~ 70°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.256" Dia (6.50mm)
Height - Seated (Max):	0.413" (10.50mm)

Please confirm the specifications of the products when ordering.
