LQW15AN3N0D8ZD

Part No :: LQW15AN3N0D8ZD

Manufacturer: TOKO / Murata

VIGOR # :: 1610713

Description: FIXED IND 3NH 1.35A 63 MOHM SMD

Catalog: Fixed Inductors

DataSheet: LQW15AN3N0D8ZD PDF

Country of origin: -

Date code: -

LQW15AN3N0D8ZD Specifications

Type	Description
Series:	LQW15
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Non-Magnetic
Inductance:	3 nH
Tolerance:	±0.5nH
Current Rating (Amps):	1.35 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	63mOhm Max
Q @ Freq:	20 @ 250MHz
Frequency - Self Resonant:	12.5GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	-
Size / Dimension:	0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max):	0.024" (0.60mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 9169

Shipped from

HK warehouse

Expected Shipping Date

Apr 06 - Apr 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.2400~~	~~$0.24~~
10000	~~$0.0750~~	~~$750.50~~
30000	~~$0.0727~~	~~$2 181.30~~
50000	~~$0.0704~~	~~$3 518.00~~
100000	~~$0.0680~~	~~$6 802.00~~

Current price of LQW15AN3N0D8ZD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

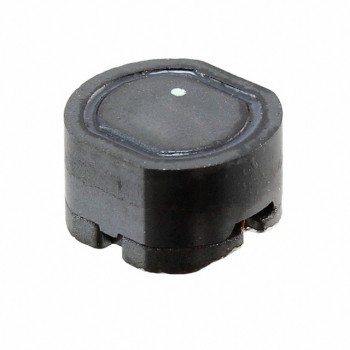

744787220

FIXED IND 22UH 1.83A 103 MOHM

B82498F3121G001

FIXED IND 120NH 440MA 310 MOHM

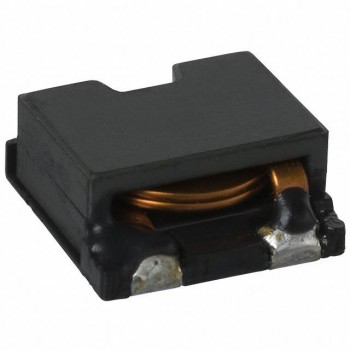

CEP125NP-2R2MC-U
