ISC1812ER680K

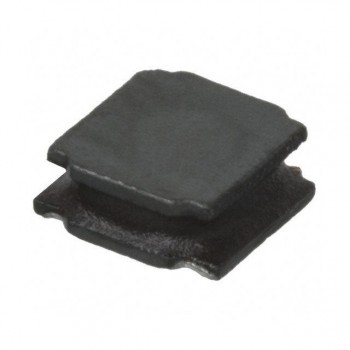

Image is for reference,
please contact us to get the real picture

Part No :: ISC1812ER680K

Manufacturer: Vishay / Dale

Description: FIXED IND 68UH 164MA 2.6 OHM SMD

Catalog: Fixed Inductors

DataSheet: ISC1812ER680K PDF

Availability: 0 pieces

Unit Price: ~~$0.66080~~

Current price of ISC1812ER680K is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ISC1812ER680K Specifications

Type	Description
Series:	ISC-1812
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	68 µH
Tolerance:	±10%
Current Rating (Amps):	164 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	2.6Ohm Max
Q @ Freq:	50 @ 2.52MHz
Frequency - Self Resonant:	7.6MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
