NLCV25T-3R3M-PFR

Part No :: NLCV25T-3R3M-PFR

Manufacturer: TDK Corporation

VIGOR # :: 1611386

Description: FIXED IND 3.3UH 570MA 528 MOHM

Catalog: Fixed Inductors

DataSheet: NLCV25T-3R3M-PFR PDF

Country of origin: -

Date code: -

NLCV25T-3R3M-PFR Specifications

Type	Description
Series:	NLCV-PF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	570 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	528mOhm Max
Q @ Freq:	10 @ 7.96MHz
Frequency - Self Resonant:	54MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1008 (2520 Metric)
Supplier Device Package:	1008 (2520 Metric)
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.075" (1.90mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 5160

Shipped from

HK warehouse

Expected Shipping Date

Jan 12 - Jan 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.25~~	~~$0.25~~
2000	~~USD 0,10~~	~~$198.00~~
4000	~~$0.09~~	~~$374.00~~
6000	~~$0.09~~	~~$528.00~~
10000	~~$0.09~~	~~$852.50~~
50000	~~$0.08~~	~~$3 987.50~~
100000	~~$0.08~~	~~$7 700.00~~

Current price of NLCV25T-3R3M-PFR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

103-223J

FIXED IND 22UH 125MA 6.4 OHM SMD

LQG15WH5N8C02D

FIXED IND 5.8NH 700MA 130 MOHM

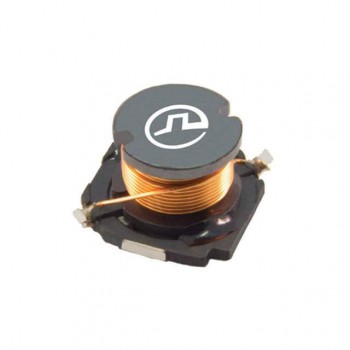

PA4308.683NLT
