CDRH8D43NP-4R7NC

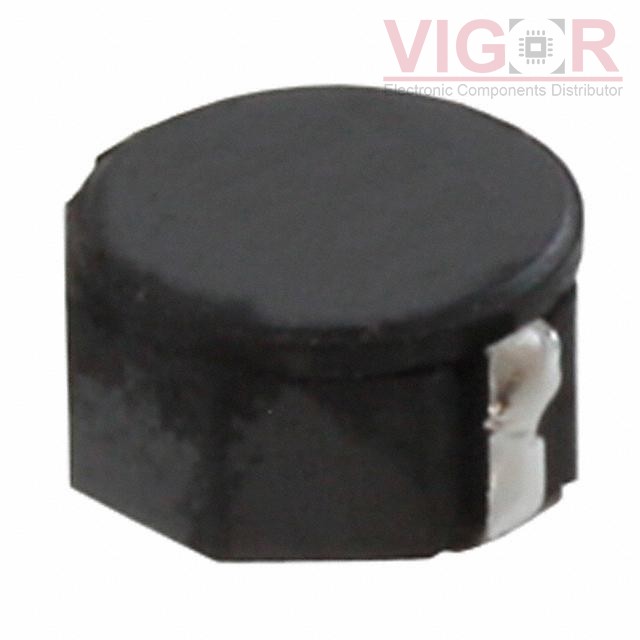

Image is for reference,
please contact us to get the real picture

Part No :: CDRH8D43NP-4R7NC

Manufacturer: Sumida Corporation

Description: FIXED IND 4.7UH 4.1A 22 MOHM SMD

Catalog: Fixed Inductors

DataSheet: CDRH8D43NP-4R7NC PDF

Availability: 2743 pieces

Unit Price: ~~$1.05000~~

Current price of CDRH8D43NP-4R7NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH8D43NP-4R7NC Specifications

Type	Description
Series:	CDRH8D43
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	4.7 µH
Tolerance:	±30%
Current Rating (Amps):	4.1 A
Current - Saturation (Isat):	5.6A
Shielding:	Shielded
DC Resistance (DCR):	22mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):	0.177" (4.50mm)
