RL822-681K-RC

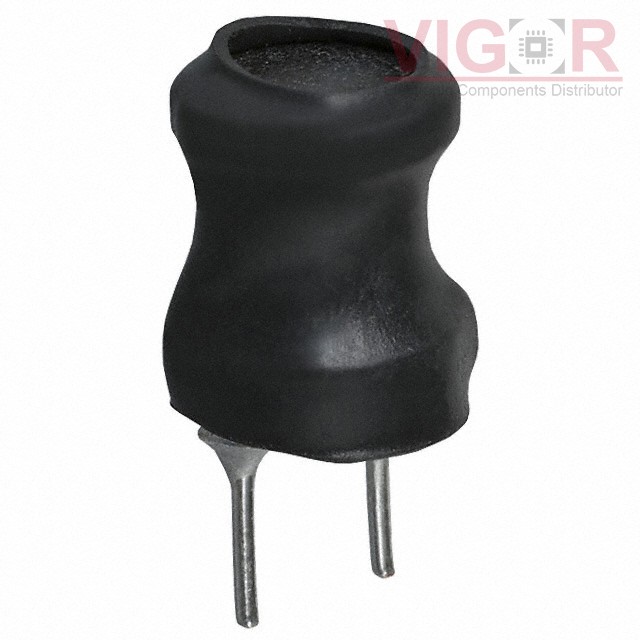

Image is for reference,
please contact us to get the real picture

Part No :: RL822-681K-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680UH 210MA 2 OHM TH

Catalog: Fixed Inductors

DataSheet: RL822-681K-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.42672~~

Current price of RL822-681K-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RL822-681K-RC Specifications

Type	Description
Series:	RL822
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±10%
Current Rating (Amps):	210 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	2Ohm Max
Q @ Freq:	20 @ 796kHz
Frequency - Self Resonant:	1.6MHz
Ratings:	-
Operating Temperature:	-55°C ~ 105°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.335" Dia (8.50mm)
Height - Seated (Max):	0.433" (11.00mm)
