CDPH4D19FNP-6R8MC

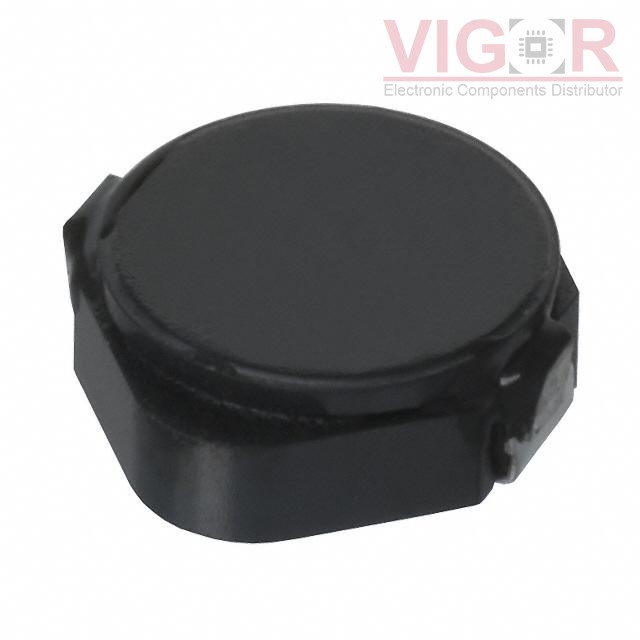

Image is for reference,
please contact us to get the real picture

Part No :: CDPH4D19FNP-6R8MC

Manufacturer: Sumida Corporation

Description: FIXED IND 6.8UH 3.02A 50 MOHM

Catalog: Fixed Inductors

DataSheet: CDPH4D19FNP-6R8MC PDF

Availability: 1706 pieces

Unit Price: ~~$0.98000~~

Current price of CDPH4D19FNP-6R8MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDPH4D19FNP-6R8MC Specifications

Type	Description
Series:	CDPH4D19F
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	6.8 µH
Tolerance:	±20%
Current Rating (Amps):	3.02 A
Current - Saturation (Isat):	1A
Shielding:	Shielded
DC Resistance (DCR):	50mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
