LQH66SN681M03L

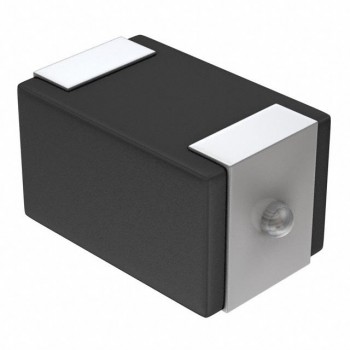

Image is for reference,
please contact us to get the real picture

Part No :: LQH66SN681M03L

Manufacturer: TOKO / Murata

Description: FIXED IND 680UH 200MA 5.46 OHM

Catalog: Fixed Inductors

DataSheet: LQH66SN681M03L PDF

Availability: 0 pieces

Unit Price: ~~$1.16460~~

Current price of LQH66SN681M03L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LQH66SN681M03L Specifications

Type	Description
Series:	LQH66
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Shielded
DC Resistance (DCR):	5.46Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2MHz
Ratings:	-
Operating Temperature:	-40°C ~ 80°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Max):	0.197" (5.00mm)
