AMDLA1004Q-5R6MT

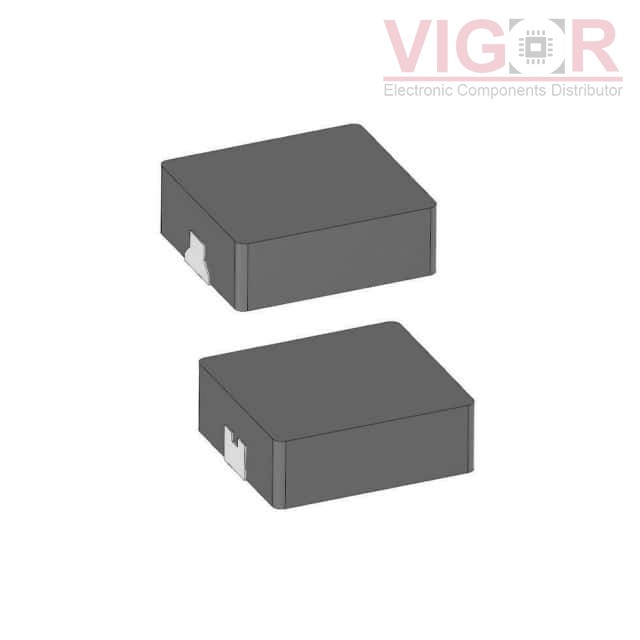

Image is for reference,
please contact us to get the real picture

Part No :: AMDLA1004Q-5R6MT

Manufacturer: Abracon

Description: FIXED IND 5.6UH 8A 22.8 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AMDLA1004Q-5R6MT PDF

Availability: 0 pieces

Unit Price: ~~$0.83462~~

Current price of AMDLA1004Q-5R6MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AMDLA1004Q-5R6MT Specifications

Type	Description
Series:	AMDLA1004Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Metal
Inductance:	5.6 µH
Tolerance:	±20%
Current Rating (Amps):	8 A
Current - Saturation (Isat):	14.1A
Shielding:	Shielded
DC Resistance (DCR):	22.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
