ASPI-7318-R68M-T

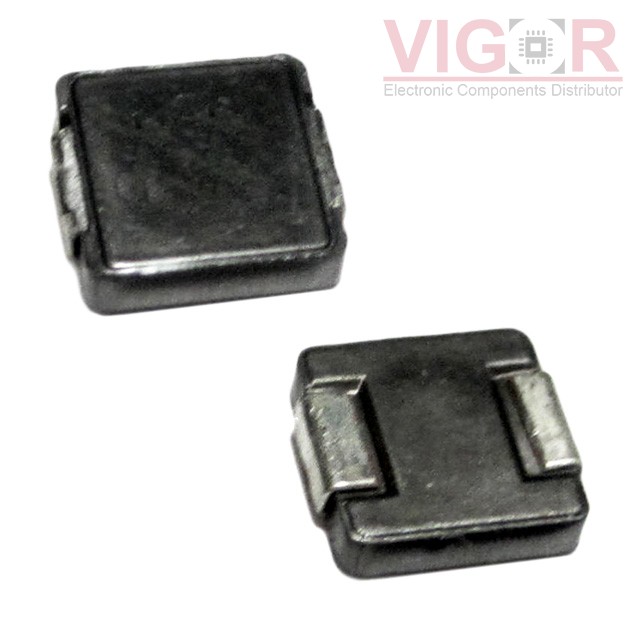

Image is for reference,
please contact us to get the real picture

Part No :: ASPI-7318-R68M-T

Manufacturer: Abracon

Description: FIXED IND 680NH 15.5A 5.5 MOHM

Catalog: Fixed Inductors

DataSheet: ASPI-7318-R68M-T PDF

Availability: 0 pieces

Unit Price: ~~$0.43008~~

Current price of ASPI-7318-R68M-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ASPI-7318-R68M-T Specifications

Type	Description
Series:	ASPI-7318
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	15.5 A
Current - Saturation (Isat):	22A
Shielding:	Shielded
DC Resistance (DCR):	5.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	200 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
