CDMC104NP-R36M

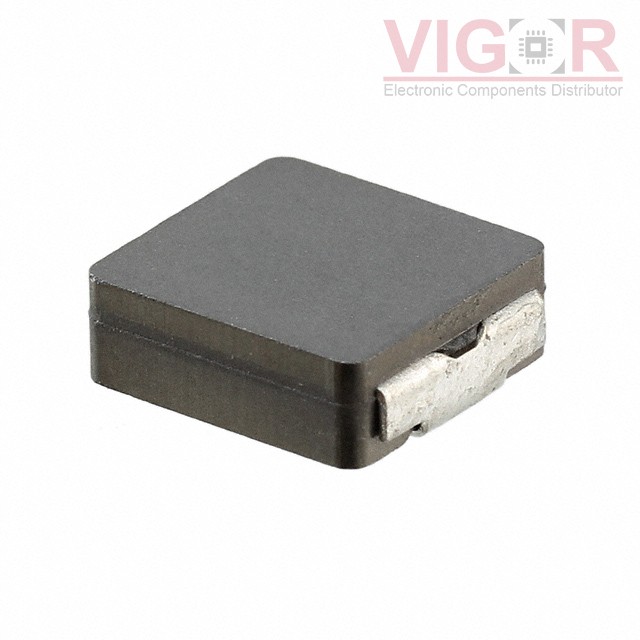

Image is for reference,
please contact us to get the real picture

Part No :: CDMC104NP-R36M

Manufacturer: Sumida Corporation

Description: FIXED IND 360NH 25A 1.1 MOHM SMD

Catalog: Fixed Inductors

DataSheet: CDMC104NP-R36M PDF

Availability: 224 pieces

Unit Price: ~~$2.11000~~

Current price of CDMC104NP-R36M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDMC104NP-R36M Specifications

Type	Description
Series:	CDMC104
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Metal Composite
Inductance:	360 nH
Tolerance:	±20%
Current Rating (Amps):	25 A
Current - Saturation (Isat):	28A
Shielding:	Shielded
DC Resistance (DCR):	1.1mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.453" L x 0.394" W (11.50mm x 10.00mm)
Height - Seated (Max):	0.157" (4.00mm)
