CD43NP-8R2MC

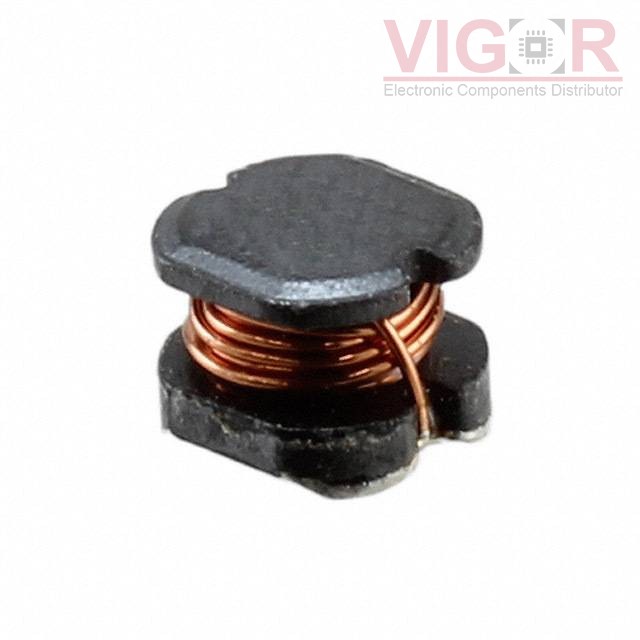

Image is for reference,
please contact us to get the real picture

Part No :: CD43NP-8R2MC

Manufacturer: Sumida Corporation

Description: FIXED IND 8.2UH 1.37A 146.2 MOHM

Catalog: Fixed Inductors

DataSheet: CD43NP-8R2MC PDF

Availability: 0 pieces

Unit Price: ~~$0.68000~~

Current price of CD43NP-8R2MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CD43NP-8R2MC Specifications

Type	Description
Series:	CD43
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	8.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.37 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	146.2mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	7.96 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max):	0.138" (3.50mm)

Please confirm the specifications of the products when ordering.
