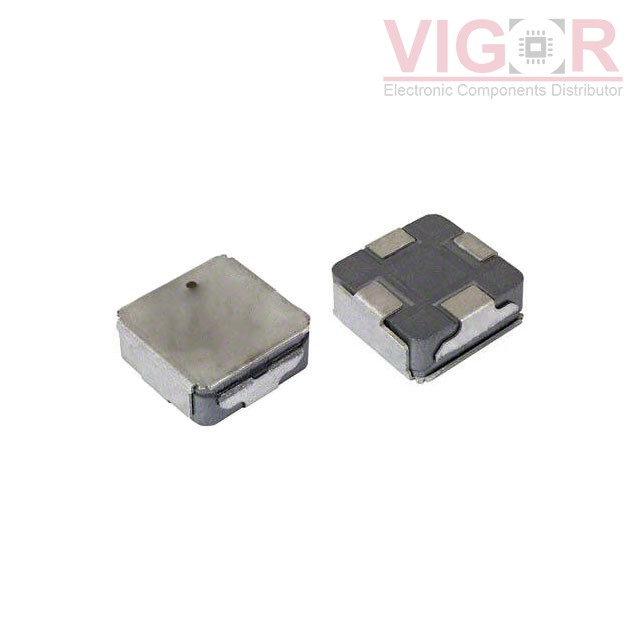

IHLE4040DDER2R2M5A

Part No :: IHLE4040DDER2R2M5A

Manufacturer: Vishay / Dale

VIGOR # :: 1613510

Description: FIXED IND 2.2UH 15A 8.76 MOHM

Catalog: Fixed Inductors

DataSheet: IHLE4040DDER2R2M5A PDF

Country of origin: -

Date code: -

IHLE4040DDER2R2M5A Specifications

Type	Description
Series:	IHLE-4040DD-5A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	15 A
Current - Saturation (Isat):	12A
Shielding:	Shielded
DC Resistance (DCR):	8.76mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard, 4 Lead
Supplier Device Package:	4040
Size / Dimension:	0.426" L x 0.426" W (10.82mm x 10.82mm)
Height - Seated (Max):	0.169" (4.30mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 637

Shipped from

HK warehouse

Expected Shipping Date

Nov 04 - Nov 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.9700~~	~~$1.97~~
500	~~$1.0290~~	~~$514.51~~
1000	~~$0.9382~~	~~$938.23~~
2500	~~$0.9080~~	~~$2 269.90~~
5000	~~$0.8777~~	~~$4 388.50~~
12500	~~$0.8474~~	~~$10 592.88~~

Current price of IHLE4040DDER2R2M5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SRR1260-1R2Y

FIXED IND 1.2UH 9.2A 8 MOHM SMD

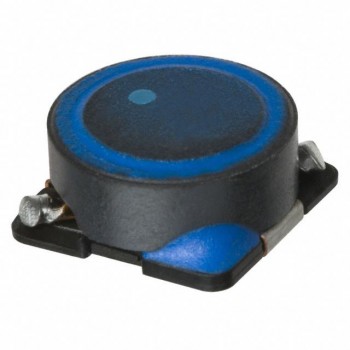

SLF10145T-470M1R4-H
