SWS-0.85-680

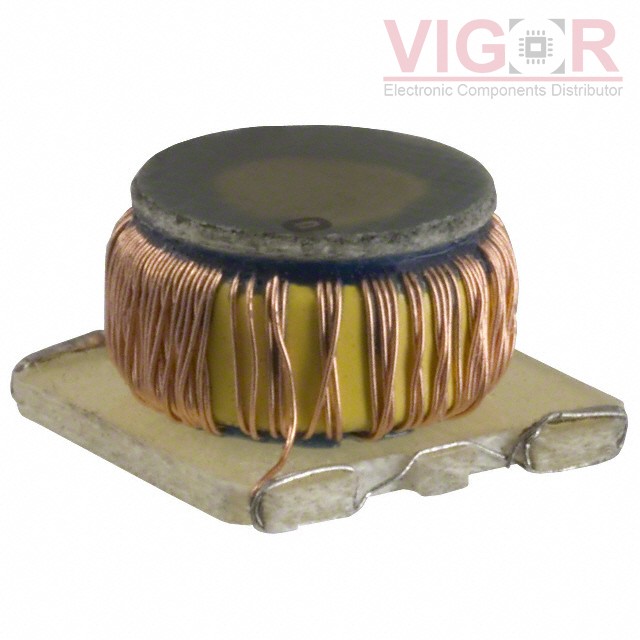

Image is for reference,
please contact us to get the real picture

Part No :: SWS-0.85-680

Manufacturer: Amgis

Description: FIXED IND 680UH 850MA 1.25 OHM

Catalog: Fixed Inductors

DataSheet: SWS-0.85-680 PDF

Availability: 0 pieces

Unit Price: ~~$3.81920~~

Current price of SWS-0.85-680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWS-0.85-680 Specifications

Type	Description
Series:	SW
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Toroidal
Material - Core:	Iron Powder
Inductance:	680 µH
Tolerance:	±20%
Current Rating (Amps):	850 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	1.25Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	20 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.701" L x 0.669" W (17.80mm x 17.00mm)
Height - Seated (Max):	0.435" (11.05mm)

Please confirm the specifications of the products when ordering.
