SRP5015TA-R68M

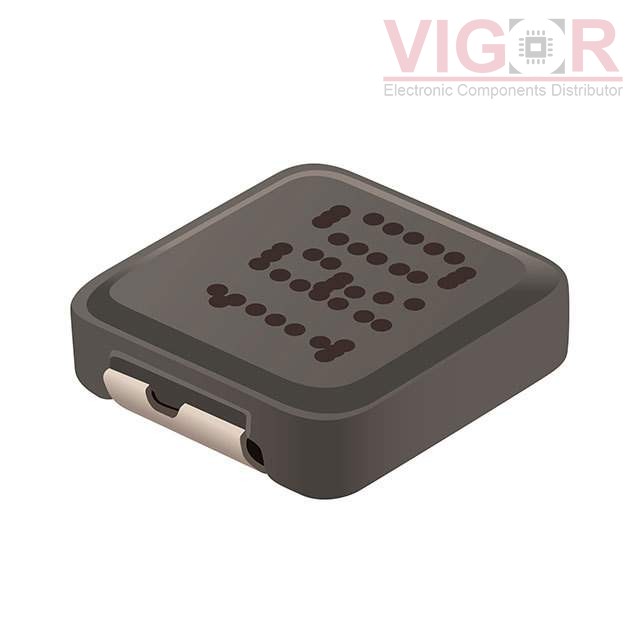

Image is for reference,
please contact us to get the real picture

Part No :: SRP5015TA-R68M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 680NH 7A 16.2 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP5015TA-R68M PDF

Availability: 0 pieces

Unit Price: ~~$1.50000~~

Current price of SRP5015TA-R68M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP5015TA-R68M Specifications

Type	Description
Series:	SRP5015TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Carbonyl Powder
Inductance:	680 nH
Tolerance:	±20%
Current Rating (Amps):	7 A
Current - Saturation (Isat):	13A
Shielding:	Shielded
DC Resistance (DCR):	16.2mOhm Max
Q @ Freq:	5 @ 100kHz
Frequency - Self Resonant:	85MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max):	0.059" (1.50mm)
