SRN4018TA-220M

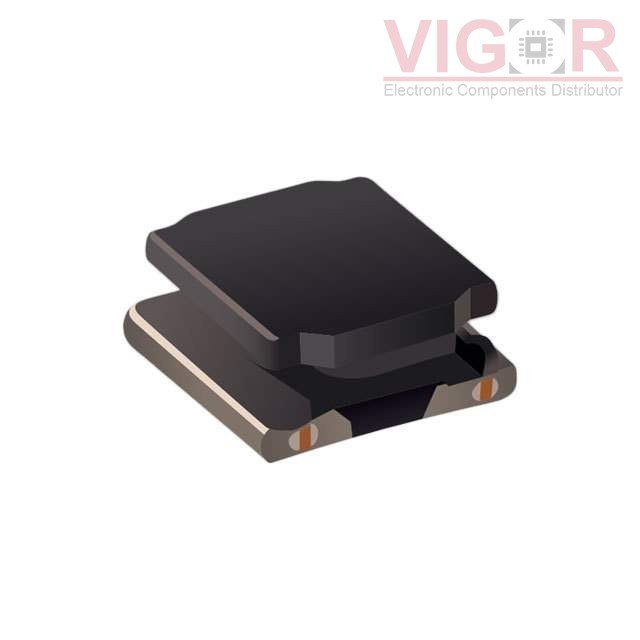

Image is for reference,
please contact us to get the real picture

Part No :: SRN4018TA-220M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 750MA 290MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRN4018TA-220M PDF

Availability: 8363 pieces

Unit Price: ~~$0.50000~~

Current price of SRN4018TA-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRN4018TA-220M Specifications

Type	Description
Series:	SRN4018TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	750 mA
Current - Saturation (Isat):	900mA
Shielding:	Semi-Shielded
DC Resistance (DCR):	290mOhm
Q @ Freq:	10 @ 100kHz
Frequency - Self Resonant:	26MHz
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max):	0.071" (1.80mm)
