39U801C

39U801C

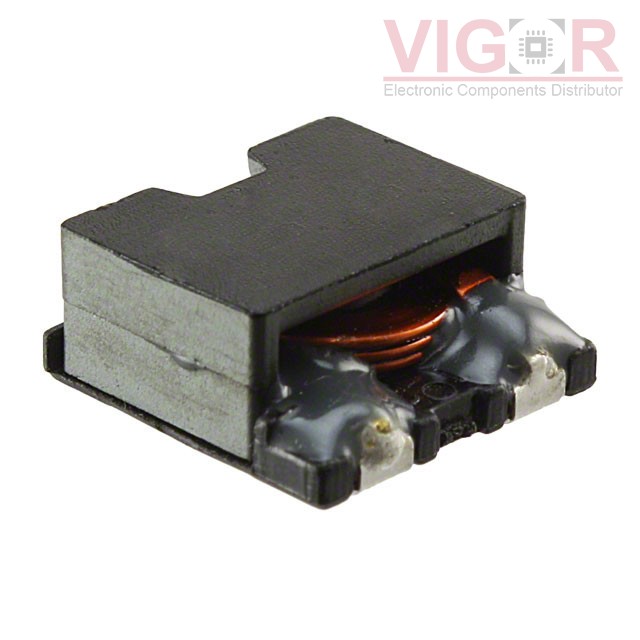

Image is for reference,
please contact us to get the real picture

Part No :

39U801C

Manufacturer
Murata Power Solutions
Description
FIXED IND 800NH 18A 2.5 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Nov 12 - Nov 16 2025
DataSheet
39U801C PDF
Availability
0 pieces
Unit Price
$1.18371

Current price of 39U801C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

39U801C Specifications
Type Description
Series:3900
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:-
Inductance:800 nH
Tolerance:±30%
Current Rating (Amps):18 A
Current - Saturation (Isat):25.7A
Shielding:Unshielded
DC Resistance (DCR):2.5mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.508" L x 0.508" W (12.90mm x 12.90mm)
Height - Seated (Max):0.228" (5.80mm)
