AWVS00505040220M00

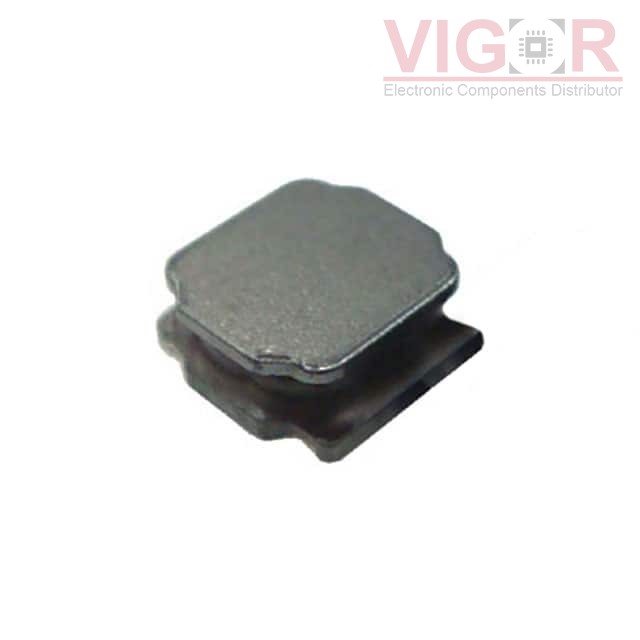

Image is for reference,
please contact us to get the real picture

Part No :: AWVS00505040220M00

Manufacturer: Chilisin Electronics

Description: FIXED IND 22UH 1.4A 135 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AWVS00505040220M00 PDF

Availability: 2825 pieces

Unit Price: ~~$0.55000~~

Current price of AWVS00505040220M00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AWVS00505040220M00 Specifications

Type	Description
Series:	AWVS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.4 A
Current - Saturation (Isat):	1.8A
Shielding:	Shielded
DC Resistance (DCR):	135mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):	0.165" (4.20mm)
