IHLP2525CZETR20N01

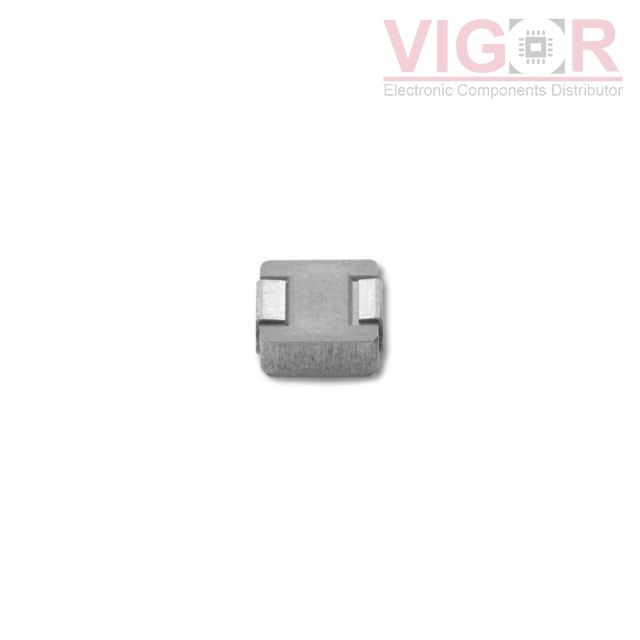

Image is for reference,
please contact us to get the real picture

Part No :: IHLP2525CZETR20N01

Manufacturer: Vishay / Dale

Description: FIXED IND 200NH 24A 3MOHM SMD

Catalog: Fixed Inductors

DataSheet: IHLP2525CZETR20N01 PDF

Availability: 985 pieces

Unit Price: ~~$1.19000~~

Current price of IHLP2525CZETR20N01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IHLP2525CZETR20N01 Specifications

Type	Description
Series:	IHLP-2525CZ-01
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Molded
Material - Core:	-
Inductance:	200 nH
Tolerance:	±30%
Current Rating (Amps):	24 A
Current - Saturation (Isat):	41A
Shielding:	Shielded
DC Resistance (DCR):	3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	150MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max):	0.118" (3.00mm)
