SRN8040TA-220M

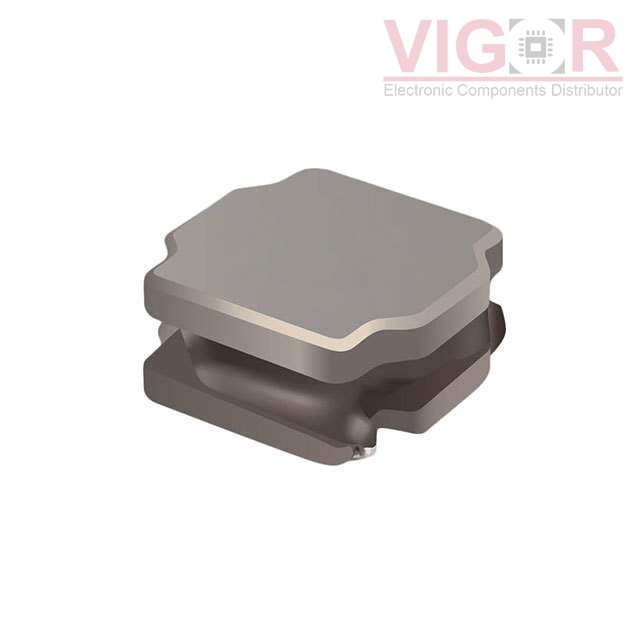

Image is for reference,
please contact us to get the real picture

Part No :: SRN8040TA-220M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 2.9A 73 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRN8040TA-220M PDF

Availability: 4612 pieces

Unit Price: ~~$0.76000~~

Current price of SRN8040TA-220M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRN8040TA-220M Specifications

Type	Description
Series:	SRN8040TA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.9 A
Current - Saturation (Isat):	3.1A
Shielding:	Semi-Shielded
DC Resistance (DCR):	73mOhm
Q @ Freq:	12 @ 1MHz
Frequency - Self Resonant:	18MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):	0.177" (4.50mm)
