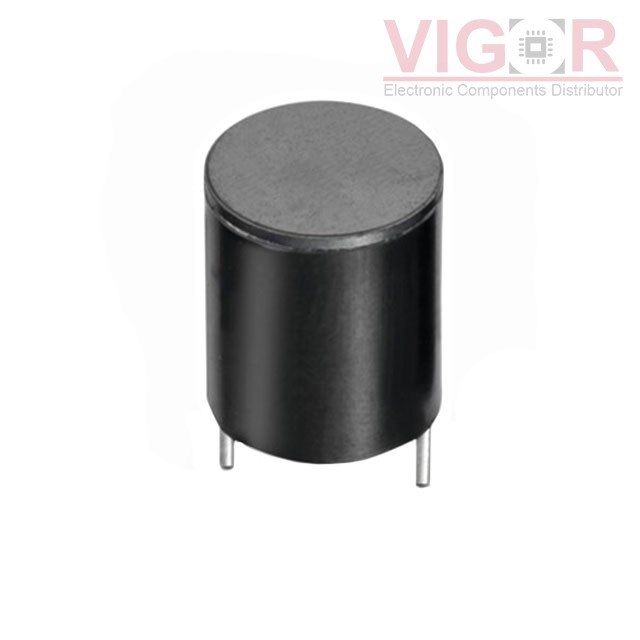

744750560220

Part No :: 744750560220

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1615333

Description: FIXED IND 22UH 7.7A 14.5 MOHM

Catalog: Fixed Inductors

DataSheet: 744750560220 PDF

Country of origin: -

Date code: -

744750560220 Specifications

Type	Description
Series:	WE-FAMI
Package:	Tray
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	7.7 A
Current - Saturation (Isat):	8.9A
Shielding:	Shielded
DC Resistance (DCR):	14.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	1415
Size / Dimension:	0.583" Dia (14.80mm)
Height - Seated (Max):	0.622" (15.80mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 27 - Oct 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.3100~~	~~$2.31~~
50	~~$1.9940~~	~~$99.70~~
100	~~$1.7140~~	~~$171.40~~
250	~~$1.5010~~	~~$375.25~~
500	~~$1.3550~~	~~$677.50~~

Current price of 744750560220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CDRR75NP-471MC

FIXED IND 470UH 380MA 1.416 OHM

SRP1245A-2R7M

FIXED IND 2.7UH 17A 6.7 MOHM SMD

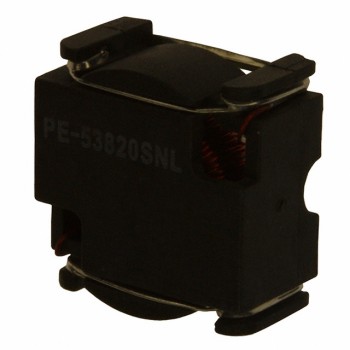

PE-53820SNLT
