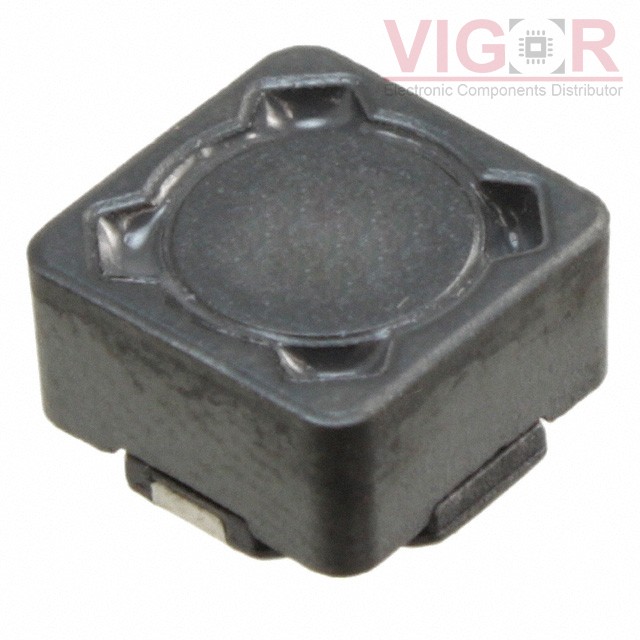

7687779561

Part No :: 7687779561

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 560UH 330MA 3.6 OHM

Catalog: Fixed Inductors

DataSheet: 7687779561 PDF

Availability: 500 pieces

Unit Price: ~~$2.32000~~

Current price of 7687779561 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7687779561 Specifications

Type	Description
Series:	WE-PD HV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	-
Inductance:	560 µH
Tolerance:	±20%
Current Rating (Amps):	330 mA
Current - Saturation (Isat):	350mA
Shielding:	Shielded
DC Resistance (DCR):	3.6Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	2.9MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.287" W (7.30mm x 7.30mm)
Height - Seated (Max):	0.177" (4.50mm)
