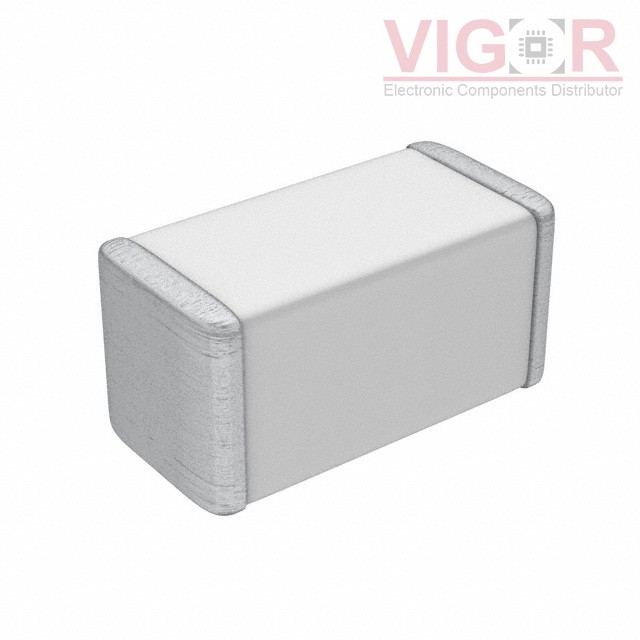

MLK1005S22NJTD25

Image is for reference,
please contact us to get the real picture

Part No :: MLK1005S22NJTD25

Manufacturer: TDK Corporation

Description: FIXED IND 22NH 200MA 700 MOHM

Catalog: Fixed Inductors

DataSheet: MLK1005S22NJTD25 PDF

Availability: 0 pieces

Unit Price: ~~$0.50000~~

Current price of MLK1005S22NJTD25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MLK1005S22NJTD25 Specifications

Type	Description
Series:	MLK
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Type:	Multilayer
Material - Core:	Non-Magnetic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	200 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	700mOhm Max
Q @ Freq:	7 @ 100MHz
Frequency - Self Resonant:	3.5GHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):	0.024" (0.60mm)
