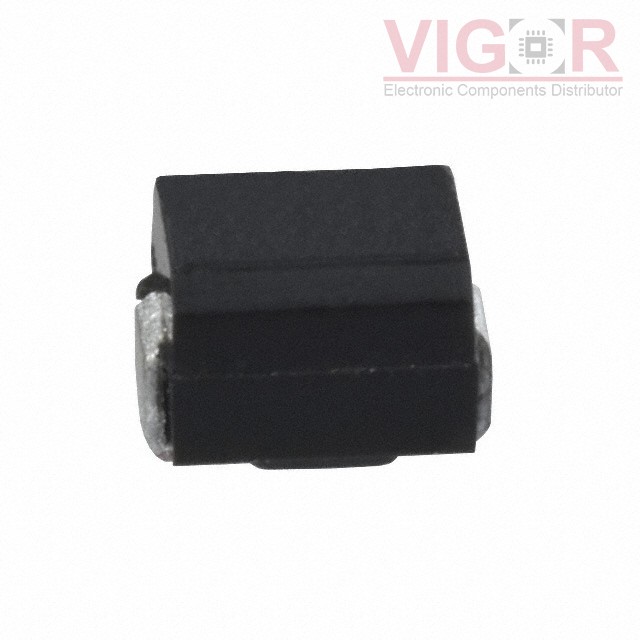

PM1210-220J-RC

Part No :: PM1210-220J-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 22UH 105MA 3.7 OHM SMD

Catalog: Fixed Inductors

DataSheet: PM1210-220J-RC PDF

Availability: 10509 pieces

Unit Price: ~~$0.40000~~

Current price of PM1210-220J-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM1210-220J-RC Specifications

Type	Description
Series:	PM1210
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±5%
Current Rating (Amps):	105 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.7Ohm Max
Q @ Freq:	30 @ 2.52MHz
Frequency - Self Resonant:	25MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1210 (3225 Metric)
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):	0.087" (2.20mm)
