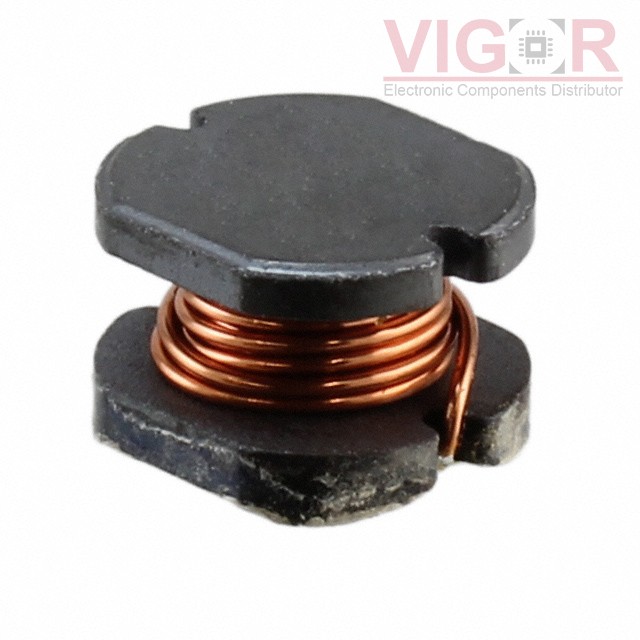

CD75NP-120KC

Part No :: CD75NP-120KC

Manufacturer: Sumida Corporation

Description: FIXED IND 12UH 2A 80 MOHM SMD

Catalog: Fixed Inductors

DataSheet: CD75NP-120KC PDF

Availability: 0 pieces

Unit Price: ~~$0.50400~~

Current price of CD75NP-120KC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CD75NP-120KC Specifications

Type	Description
Series:	CD75
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	12 µH
Tolerance:	±10%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	80mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max):	0.217" (5.50mm)
