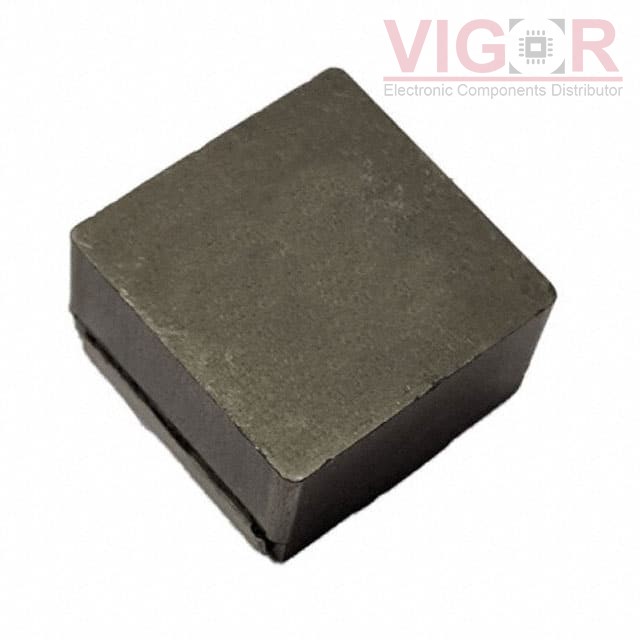

HCM1A2213V2-2R2-R

Image is for reference,
please contact us to get the real picture

Part No :: HCM1A2213V2-2R2-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 2.2UH 42.5A 1.25 MOHM

Catalog: Fixed Inductors

DataSheet: HCM1A2213V2-2R2-R PDF

Availability: 0 pieces

Unit Price: ~~$6.98720~~

Current price of HCM1A2213V2-2R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCM1A2213V2-2R2-R Specifications

Type	Description
Series:	HCM1AV2
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Iron Powder
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	42.5 A
Current - Saturation (Isat):	48A
Shielding:	Shielded
DC Resistance (DCR):	1.25mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	17MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.885" L x 0.866" W (22.48mm x 22.00mm)
Height - Seated (Max):	0.512" (13.00mm)
