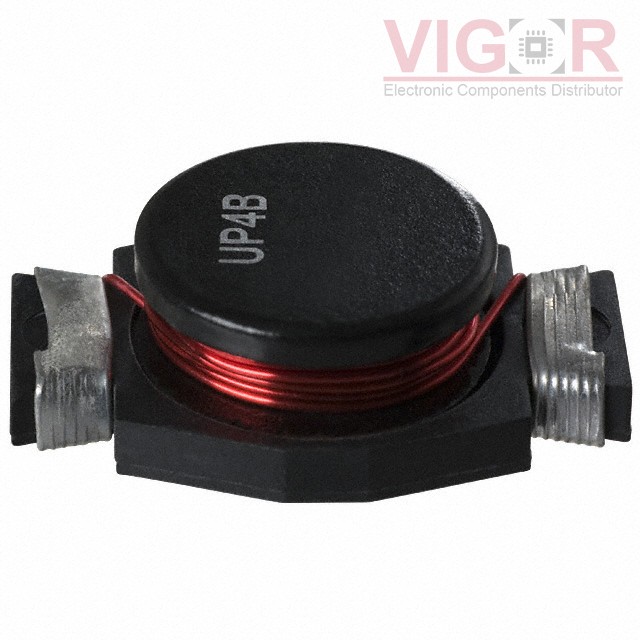

UP4B-2R2-R

Part No :: UP4B-2R2-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 2.2UH 12A 4.8 MOHM SMD

Catalog: Fixed Inductors

DataSheet: UP4B-2R2-R PDF

Availability: 120 pieces

Unit Price: ~~$2.90000~~

Current price of UP4B-2R2-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

UP4B-2R2-R Specifications

Type	Description
Series:	UNI-PAC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	12 A
Current - Saturation (Isat):	23.7A
Shielding:	Unshielded
DC Resistance (DCR):	4.8mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.870" L x 0.591" W (22.10mm x 15.00mm)
Height - Seated (Max):	0.310" (7.87mm)
