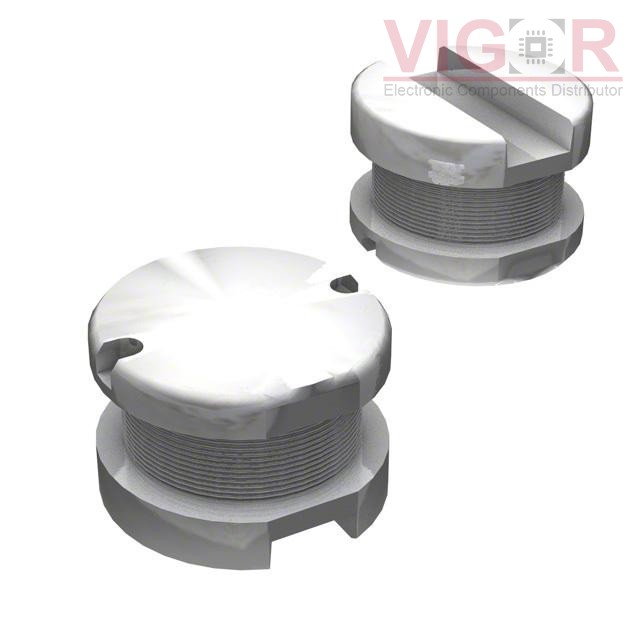

SDR0805-560KL

Part No :: SDR0805-560KL

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1617781

Description: FIXED IND 56UH 940MA 240MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR0805-560KL PDF

Country of origin: -

Date code: -

SDR0805-560KL Specifications

Type	Description
Series:	SDR0805
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	56 µH
Tolerance:	±10%
Current Rating (Amps):	940 mA
Current - Saturation (Isat):	1.5A
Shielding:	Unshielded
DC Resistance (DCR):	240mOhm Max
Q @ Freq:	15 @ 2.52MHz
Frequency - Self Resonant:	9MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max):	0.209" (5.30mm)
