744307016

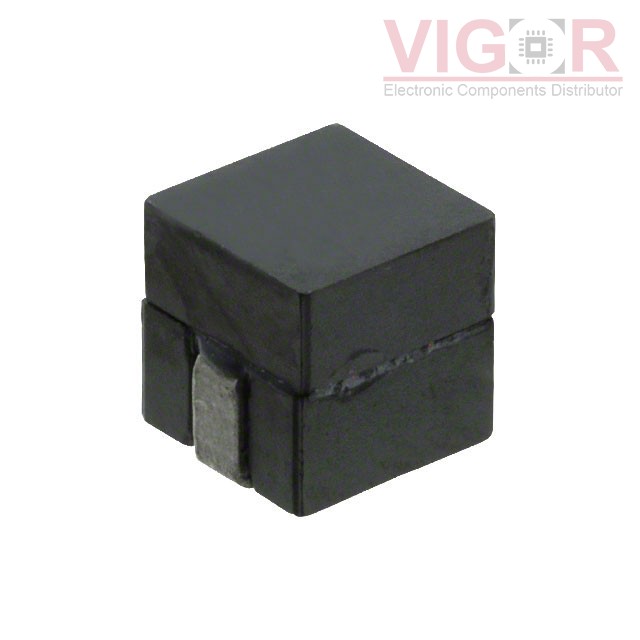

Image is for reference,
please contact us to get the real picture

Part No :: 744307016

Manufacturer: Würth Elektronik Midcom

Description: FIXED IND 160NH 26A 0.29 MOHM

Catalog: Fixed Inductors

DataSheet: 744307016 PDF

Availability: 447 pieces

Unit Price: ~~$1.78000~~

Current price of 744307016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744307016 Specifications

Type	Description
Series:	WE-HCM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Manganese Zinc Ferrite (MnZn)
Inductance:	160 nH
Tolerance:	±20%
Current Rating (Amps):	26 A
Current - Saturation (Isat):	41A
Shielding:	Shielded
DC Resistance (DCR):	0.29mOhm
Q @ Freq:	-
Frequency - Self Resonant:	600MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.291" L x 0.283" W (7.40mm x 7.20mm)
Height - Seated (Max):	0.283" (7.20mm)
