ELJ-PB820KF

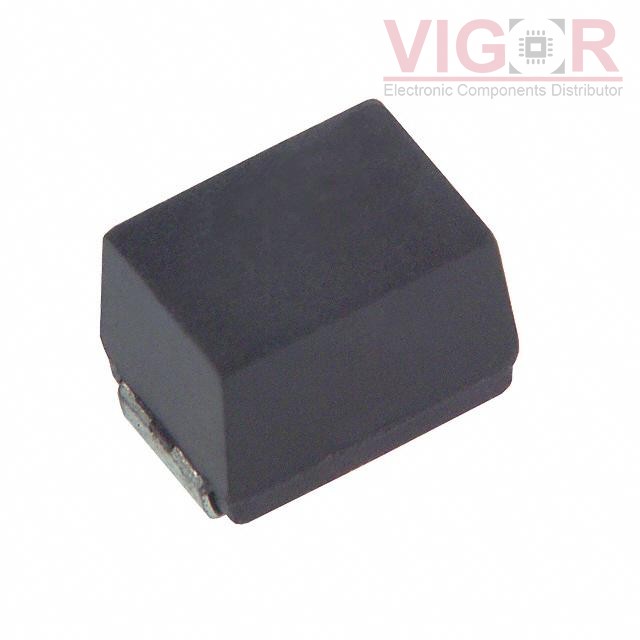

Image is for reference,
please contact us to get the real picture

Part No :: ELJ-PB820KF

Manufacturer: Panasonic

Description: FIXED IND 82UH 160MA 3.5 OHM SMD

Catalog: Fixed Inductors

DataSheet: ELJ-PB820KF PDF

Availability: 657 pieces

Unit Price: ~~$0.55000~~

Current price of ELJ-PB820KF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ELJ-PB820KF Specifications

Type	Description
Series:	PB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Type:	Wirewound
Material - Core:	-
Inductance:	82 µH
Tolerance:	±10%
Current Rating (Amps):	160 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.5Ohm Max
Q @ Freq:	10 @ 2.52MHz
Frequency - Self Resonant:	6.5MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	1812 (4532 Metric)
Supplier Device Package:	1812
Size / Dimension:	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max):	0.134" (3.40mm)

Please confirm the specifications of the products when ordering.
