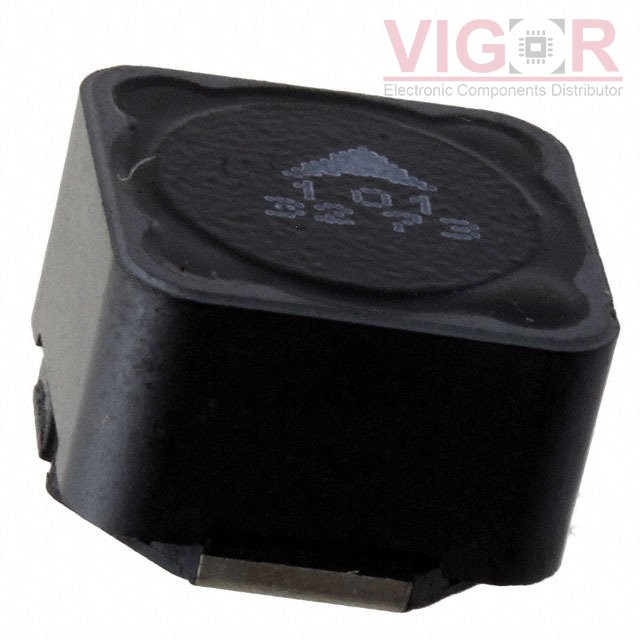

B82477R4821M100

Part No :: B82477R4821M100

Manufacturer: TDK EPCOS

Description: FIXED IND 820NH 11.5A 5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82477R4821M100 PDF

Availability: 0 pieces

Unit Price: ~~$1.55700~~

Current price of B82477R4821M100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82477R4821M100 Specifications

Type	Description
Series:	B82477R4
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	820 nH
Tolerance:	±20%
Current Rating (Amps):	11.5 A
Current - Saturation (Isat):	27A
Shielding:	Shielded
DC Resistance (DCR):	5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.335" (8.50mm)

Please confirm the specifications of the products when ordering.
