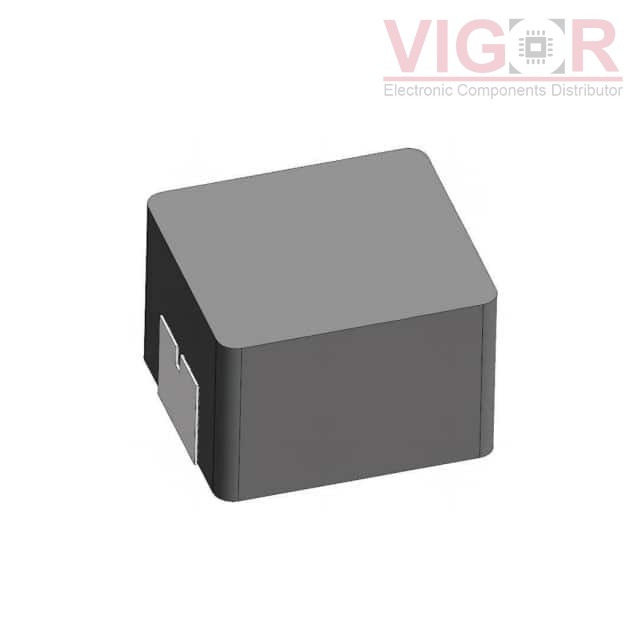

AMPLA7050Q-220MT

Part No :: AMPLA7050Q-220MT

Manufacturer: Abracon

Description: FIXED IND 22UH 2.5A 170 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AMPLA7050Q-220MT PDF

Availability: 0 pieces

Current price of AMPLA7050Q-220MT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AMPLA7050Q-220MT Specifications

Type	Description
Series:	AMPLA7050Q
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Molded
Material - Core:	Carbonyl Powder
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	2.5 A
Current - Saturation (Isat):	5.5A
Shielding:	Shielded
DC Resistance (DCR):	170mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
