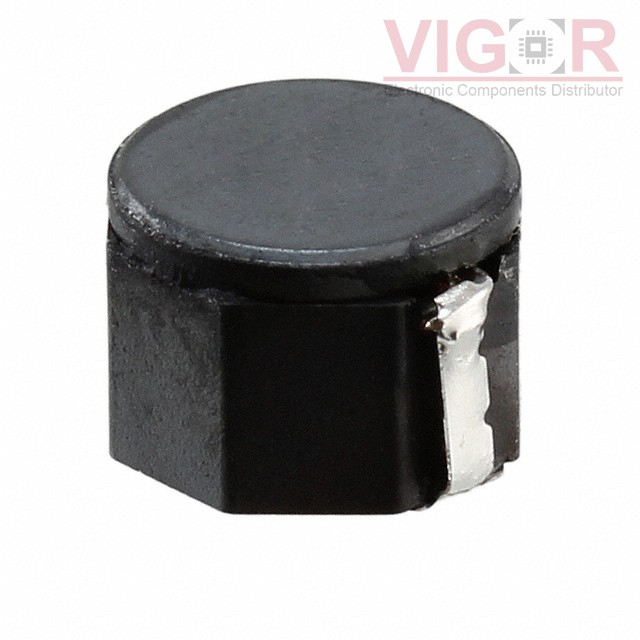

CDRH8D58/LDNP-150NC

Image is for reference,
please contact us to get the real picture

Part No :: CDRH8D58/LDNP-150NC

Manufacturer: Sumida Corporation

Description: FIXED IND 15UH 3.6A 36.3 MOHM

Catalog: Fixed Inductors

DataSheet: CDRH8D58/LDNP-150NC PDF

Availability: 0 pieces

Unit Price: ~~$0.64800~~

Current price of CDRH8D58/LDNP-150NC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CDRH8D58/LDNP-150NC Specifications

Type	Description
Series:	CDRH8D58/LD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±30%
Current Rating (Amps):	3.6 A
Current - Saturation (Isat):	2.3A
Shielding:	Shielded
DC Resistance (DCR):	36.3mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max):	0.236" (6.00mm)
