B82559A5332A020

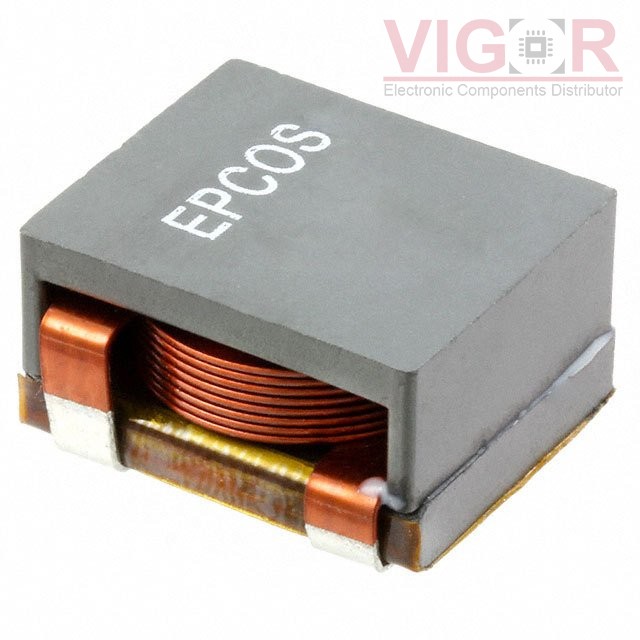

Image is for reference,
please contact us to get the real picture

Part No :: B82559A5332A020

Manufacturer: TDK EPCOS

Description: FIXED IND 3.3UH 1.5 MOHM SMD

Catalog: Fixed Inductors

DataSheet: B82559A5332A020 PDF

Availability: 133 pieces

Unit Price: ~~$7.86000~~

Current price of B82559A5332A020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82559A5332A020 Specifications

Type	Description
Series:	ERU20 - Flat Wire Inductor
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±10%
Current Rating (Amps):	-
Current - Saturation (Isat):	34A
Shielding:	Shielded
DC Resistance (DCR):	1.5mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-40°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.878" L x 0.866" W (22.30mm x 22.00mm)
Height - Seated (Max):	0.571" (14.50mm)
