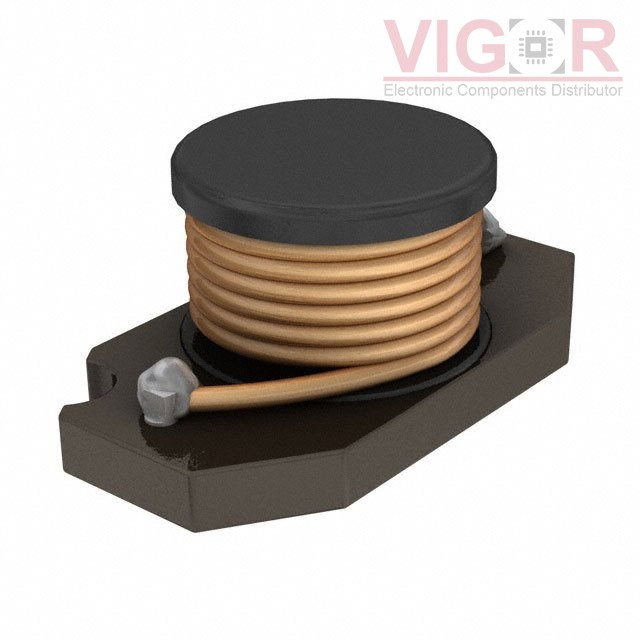

AX97-103R3

Part No :: AX97-103R3

Manufacturer: Triad Magnetics

Description: FIXED IND 3.3UH 2A 90 MOHM SMD

Catalog: Fixed Inductors

DataSheet: AX97-103R3 PDF

Availability: 0 pieces

Unit Price: ~~$0.81000~~

Current price of AX97-103R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AX97-103R3 Specifications

Type	Description
Series:	AX97
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	2 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	90mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.287" L x 0.188" W (7.30mm x 4.78mm)
Height - Seated (Max):	0.127" (3.23mm)
