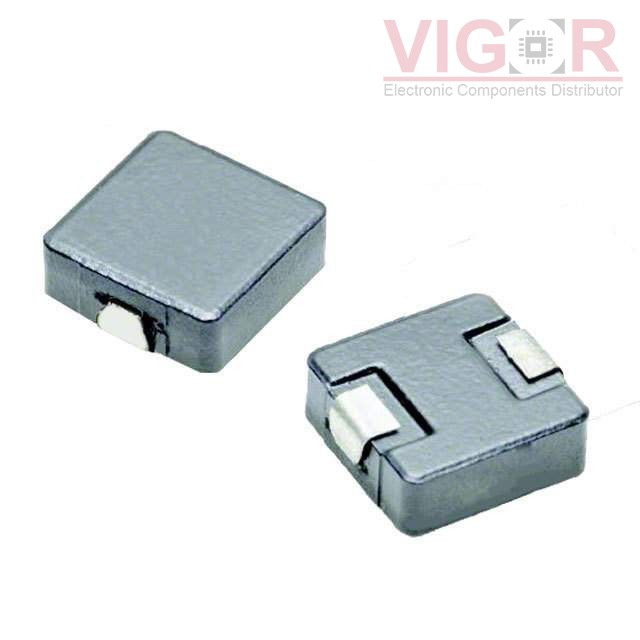

HCMA1305-1R0-R

Image is for reference,
please contact us to get the real picture

Part No :: HCMA1305-1R0-R

Manufacturer: PowerStor (Eaton)

Description: FIXED IND 1UH 29A 2.42 MOHM SMD

Catalog: Fixed Inductors

DataSheet: HCMA1305-1R0-R PDF

Availability: 220 pieces

Unit Price: ~~$1.93000~~

Current price of HCMA1305-1R0-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HCMA1305-1R0-R Specifications

Type	Description
Series:	HCMA1305
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Iron Powder
Inductance:	1 µH
Tolerance:	±20%
Current Rating (Amps):	29 A
Current - Saturation (Isat):	50A
Shielding:	Shielded
DC Resistance (DCR):	2.42mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max):	0.197" (5.00mm)
