CR54NP-220MC

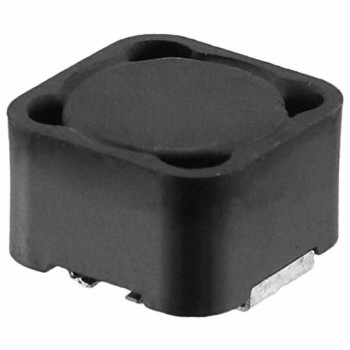

Image is for reference,
please contact us to get the real picture

Part No :: CR54NP-220MC

Manufacturer: Sumida Corporation

Description: FIXED IND 22UH 1.11A 180 MOHM

Catalog: Fixed Inductors

DataSheet: CR54NP-220MC PDF

Availability: 3718 pieces

Unit Price: ~~$0.88000~~

Current price of CR54NP-220MC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CR54NP-220MC Specifications

Type	Description
Series:	CR54
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.11 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	180mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	19.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 100°C
Inductance Frequency - Test:	2.52 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.228" L x 0.209" W (5.80mm x 5.30mm)
Height - Seated (Max):	0.191" (4.85mm)

Please confirm the specifications of the products when ordering.
