IHLP1212AEERR56M11

IHLP1212AEERR56M11

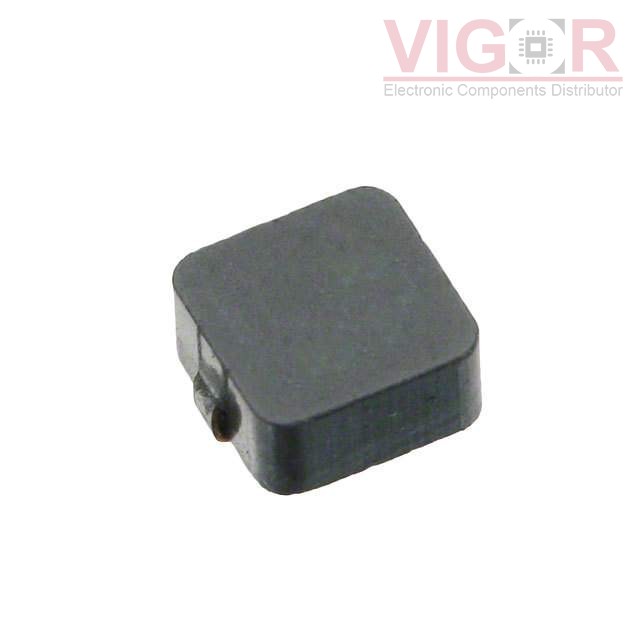

Image is for reference,
please contact us to get the real picture

Part No :

IHLP1212AEERR56M11

Manufacturer
Vishay / Dale
Description
FIXED IND 560NH 6A 20.4 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
IHLP1212AEERR56M11 PDF
Availability
0 pieces
Unit Price
$0.55800

Current price of IHLP1212AEERR56M11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IHLP1212AEERR56M11 Specifications
Type Description
Series:IHLP-1212AE-11
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):6 A
Current - Saturation (Isat):5.5A
Shielding:Shielded
DC Resistance (DCR):20.4mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.144" L x 0.118" W (3.65mm x 3.00mm)
Height - Seated (Max):0.059" (1.50mm)
