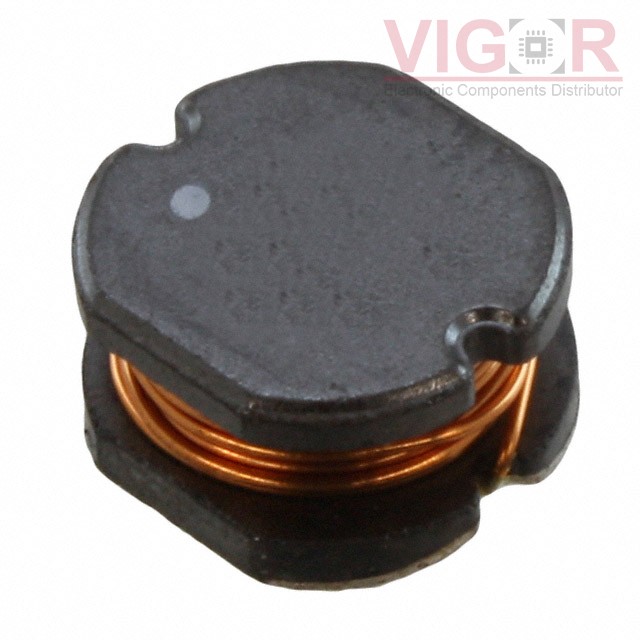

744776256

Part No :: 744776256

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 1619574

Description: FIXED IND 560UH 390MA 1.9 OHM

Catalog: Fixed Inductors

DataSheet: 744776256 PDF

Country of origin: -

Date code: -

744776256 Specifications

Type	Description
Series:	WE-PD2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±20%
Current Rating (Amps):	390 mA
Current - Saturation (Isat):	470mA
Shielding:	Unshielded
DC Resistance (DCR):	1.9Ohm Max
Q @ Freq:	-
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	10 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max):	0.232" (5.90mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 06 - Nov 10 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.6020~~	~~$1.60~~
500	~~USD 1,60~~	~~$801.00~~

Current price of 744776256 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

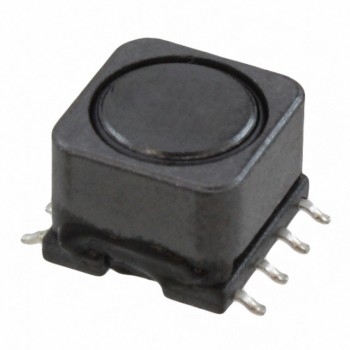

SRR0908-682YL
