SDR1307-391KL

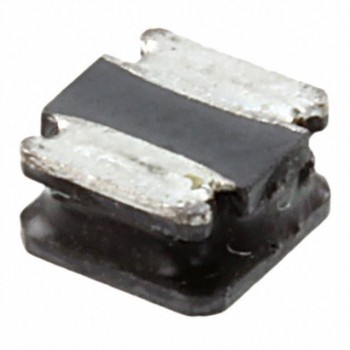

Image is for reference,
please contact us to get the real picture

Part No :: SDR1307-391KL

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 390UH 1A 600 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SDR1307-391KL PDF

Availability: 0 pieces

Unit Price: ~~$0.48620~~

Current price of SDR1307-391KL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SDR1307-391KL Specifications

Type	Description
Series:	SDR1307
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	390 µH
Tolerance:	±10%
Current Rating (Amps):	1 A
Current - Saturation (Isat):	1.5A
Shielding:	Unshielded
DC Resistance (DCR):	600mOhm Max
Q @ Freq:	12 @ 796kHz
Frequency - Self Resonant:	2.5MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Max):	0.287" (7.30mm)
