MDMK2020T2R2MM

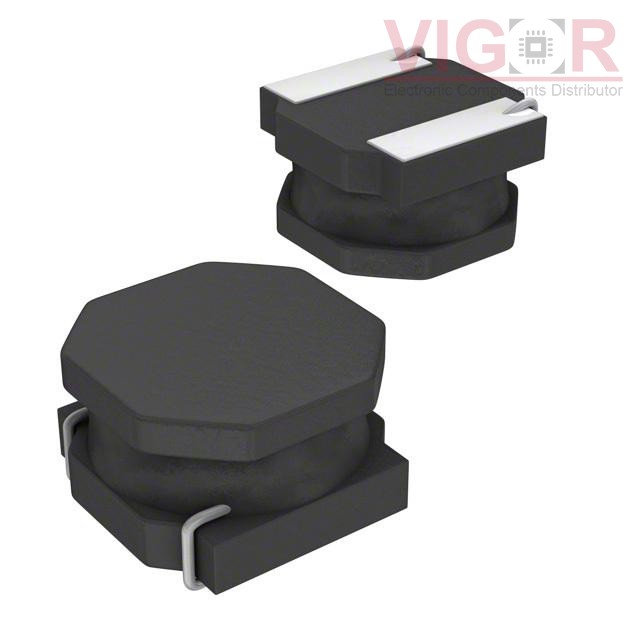

Image is for reference,
please contact us to get the real picture

Part No :: MDMK2020T2R2MM

Manufacturer: TAIYO YUDEN

Description: FIXED IND 2.2UH 1.45A 109 MOHM

Catalog: Fixed Inductors

DataSheet: MDMK2020T2R2MM PDF

Availability: 815 pieces

Unit Price: ~~$0.43000~~

Current price of MDMK2020T2R2MM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MDMK2020T2R2MM Specifications

Type	Description
Series:	MCOIL™, MD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	1.45 A
Current - Saturation (Isat):	1.75A
Shielding:	Shielded
DC Resistance (DCR):	109mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	1 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max):	0.047" (1.20mm)

Please confirm the specifications of the products when ordering.
