B82462G4223M000

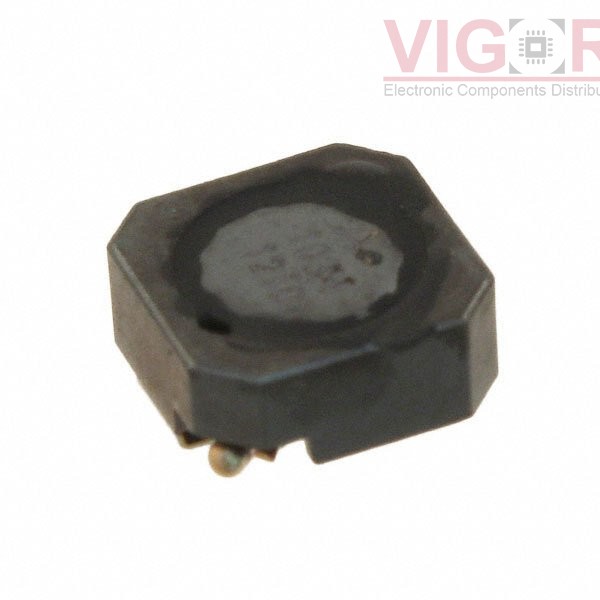

Image is for reference,
please contact us to get the real picture

Part No :: B82462G4223M000

Manufacturer: TDK EPCOS

Description: FIXED IND 22UH 1.05A 150 MOHM

Catalog: Fixed Inductors

DataSheet: B82462G4223M000 PDF

Availability: 7121 pieces

Unit Price: ~~$1.85000~~

Current price of B82462G4223M000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82462G4223M000 Specifications

Type	Description
Series:	B82462G4
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	22 µH
Tolerance:	±20%
Current Rating (Amps):	1.05 A
Current - Saturation (Isat):	850mA
Shielding:	Shielded
DC Resistance (DCR):	150mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 150°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.248" L x 0.248" W (6.30mm x 6.30mm)
Height - Seated (Max):	0.118" (3.00mm)

Please confirm the specifications of the products when ordering.
