SRP2313AA-4R7M

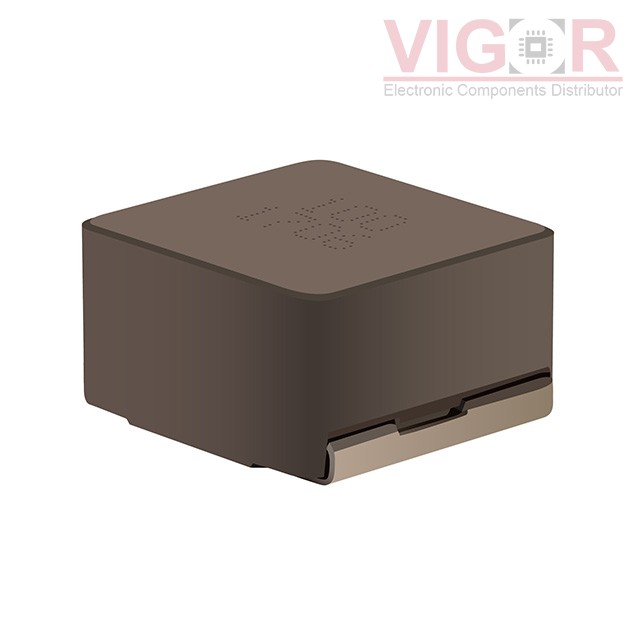

Image is for reference,
please contact us to get the real picture

Part No :: SRP2313AA-4R7M

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 4.7UH 44A 2.2 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SRP2313AA-4R7M PDF

Availability: 160 pieces

Unit Price: ~~$7.71000~~

Current price of SRP2313AA-4R7M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRP2313AA-4R7M Specifications

Type	Description
Series:	SRP2313AA
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal
Inductance:	4.7 µH
Tolerance:	±20%
Current Rating (Amps):	44 A
Current - Saturation (Isat):	34A
Shielding:	Shielded
DC Resistance (DCR):	2.2mOhm Max
Q @ Freq:	40 @ 100kHz
Frequency - Self Resonant:	11MHz
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max):	0.512" (13.00mm)

Please confirm the specifications of the products when ordering.
