CW100505-15NJ

Part No :: CW100505-15NJ

Manufacturer: J.W. Miller / Bourns

VIGOR # :: 1620413

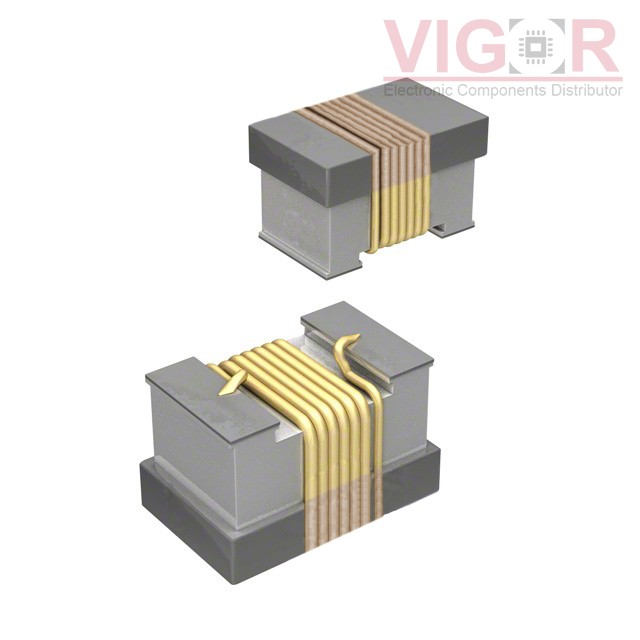

Description: FIXED IND 15NH 560MA 172MOHM SMD

Catalog: Fixed Inductors

DataSheet: CW100505-15NJ PDF

Country of origin: -

Date code: -

CW100505-15NJ Specifications

Type	Description
Series:	CW100505
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	15 nH
Tolerance:	±5%
Current Rating (Amps):	560 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	172mOhm
Q @ Freq:	26 @ 250MHz
Frequency - Self Resonant:	3.28GHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0402 (1005 Metric)
Supplier Device Package:	0402 (1005 Metric)
Size / Dimension:	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max):	0.024" (0.60mm)
