PE-0603CD220JTT

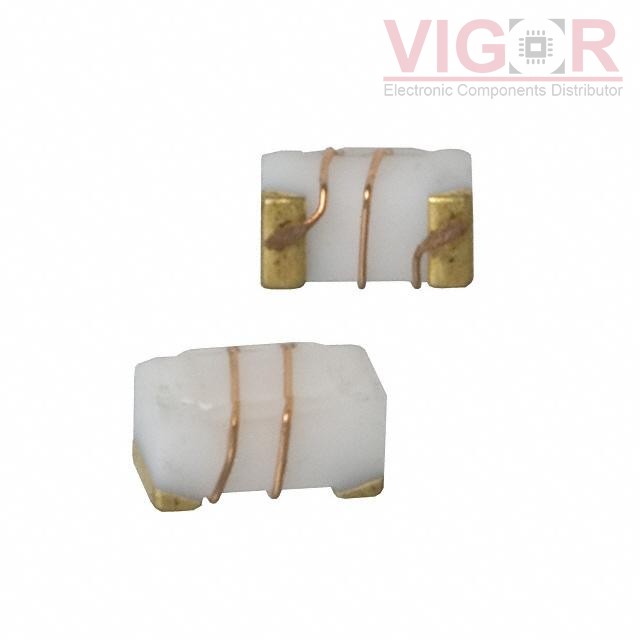

Image is for reference,
please contact us to get the real picture

Part No :: PE-0603CD220JTT

Manufacturer: PulseLarsen Antenna

Description: FIXED IND 22NH 700MA 190 MOHM

Catalog: Fixed Inductors

DataSheet: PE-0603CD220JTT PDF

Availability: 19867 pieces

Unit Price: ~~$0.36000~~

Current price of PE-0603CD220JTT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PE-0603CD220JTT Specifications

Type	Description
Series:	0603CD
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	22 nH
Tolerance:	±5%
Current Rating (Amps):	700 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	190mOhm Max
Q @ Freq:	35 @ 250MHz
Frequency - Self Resonant:	3GHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	250 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0603 (1608 Metric)
Supplier Device Package:	0603 (1608 Metric)
Size / Dimension:	0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max):	0.040" (1.02mm)
