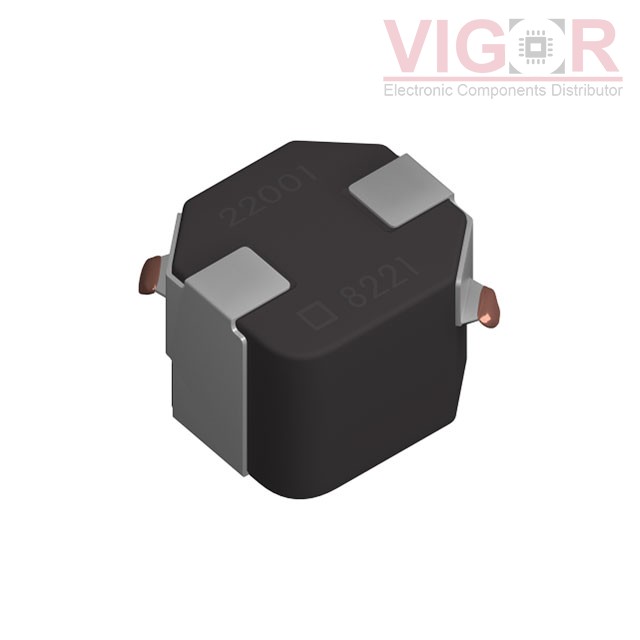

SPM7054VT-680M-D

Image is for reference,
please contact us to get the real picture

Part No :: SPM7054VT-680M-D

Manufacturer: TDK Corporation

Description: FIXED IND 68UH 2.1A 222 MOHM SMD

Catalog: Fixed Inductors

DataSheet: SPM7054VT-680M-D PDF

Availability: 3115 pieces

Unit Price: ~~$2.86000~~

Current price of SPM7054VT-680M-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SPM7054VT-680M-D Specifications

Type	Description
Series:	SPM-VT-D
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Metal Composite
Inductance:	68 µH
Tolerance:	±20%
Current Rating (Amps):	2.1 A
Current - Saturation (Isat):	3.1A
Shielding:	Shielded
DC Resistance (DCR):	222mOhm
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	AEC-Q200
Operating Temperature:	-55°C ~ 155°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.295" L x 0.276" W (7.50mm x 7.00mm)
Height - Seated (Max):	0.213" (5.40mm)
