BRC2016T2R2M

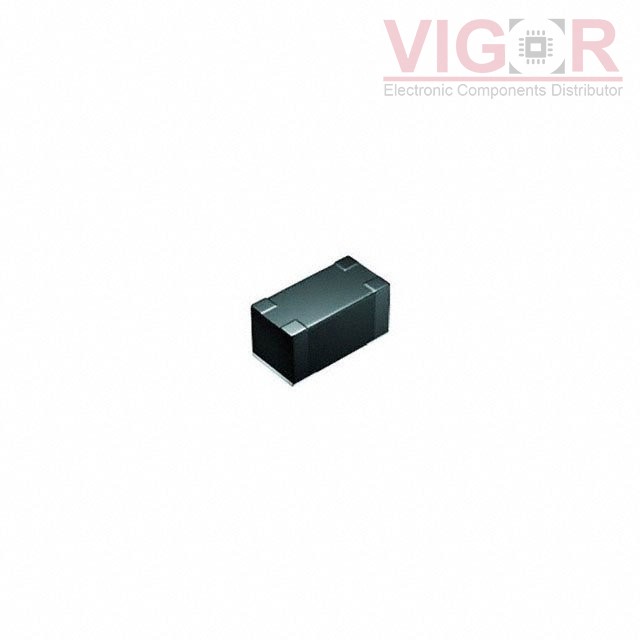

Image is for reference,
please contact us to get the real picture

Part No :: BRC2016T2R2M

Manufacturer: TAIYO YUDEN

Description: FIXED IND 2.2UH 760MA 234 MOHM

Catalog: Fixed Inductors

DataSheet: BRC2016T2R2M PDF

Availability: 414 pieces

Unit Price: ~~$0.28000~~

Current price of BRC2016T2R2M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BRC2016T2R2M Specifications

Type	Description
Series:	BR, C Type
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	760 mA
Current - Saturation (Isat):	910mA
Shielding:	Unshielded
DC Resistance (DCR):	234mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	250MHz
Ratings:	-
Operating Temperature:	-40°C ~ 105°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0806 (2016 Metric)
Supplier Device Package:	0806 (2016 Metric)
Size / Dimension:	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max):	0.071" (1.80mm)
