55085613400

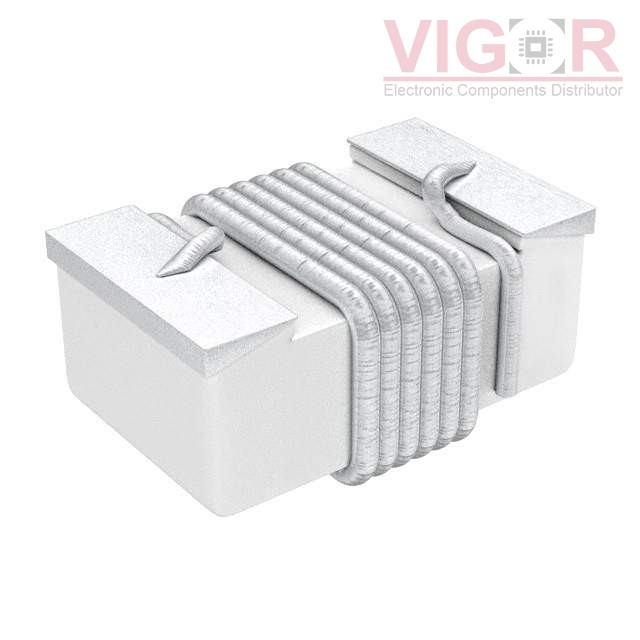

Image is for reference,
please contact us to get the real picture

Part No :: 55085613400

Manufacturer: Sumida Corporation

Description: FIXED IND 560NH 100MA 3.2 OHM

Catalog: Fixed Inductors

DataSheet: 55085613400 PDF

Availability: 0 pieces

Unit Price: ~~$0.20770~~

Current price of 55085613400 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

55085613400 Specifications

Type	Description
Series:	5508
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ceramic
Inductance:	560 nH
Tolerance:	±5%
Current Rating (Amps):	100 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	3.2Ohm Max
Q @ Freq:	35 @ 100MHz
Frequency - Self Resonant:	600MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	100 MHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805 (2012 Metric)
Size / Dimension:	0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max):	0.056" (1.42mm)
