PM127SH-150M-RC

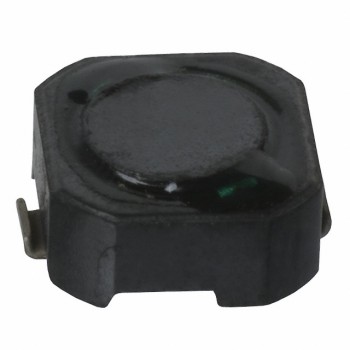

Image is for reference,
please contact us to get the real picture

Part No :: PM127SH-150M-RC

Manufacturer: J.W. Miller / Bourns

Description: FIXED IND 15UH 5.2A 28.5MOHM SMD

Catalog: Fixed Inductors

DataSheet: PM127SH-150M-RC PDF

Availability: 0 pieces

Unit Price: ~~$0.84000~~

Current price of PM127SH-150M-RC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PM127SH-150M-RC Specifications

Type	Description
Series:	PM127SH
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	15 µH
Tolerance:	±20%
Current Rating (Amps):	5.2 A
Current - Saturation (Isat):	5A
Shielding:	Shielded
DC Resistance (DCR):	28.5mOhm Max
Q @ Freq:	26 @ 2.52MHz
Frequency - Self Resonant:	13MHz
Ratings:	-
Operating Temperature:	-40°C ~ 125°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	-
Size / Dimension:	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max):	0.315" (8.00mm)

Please confirm the specifications of the products when ordering.
